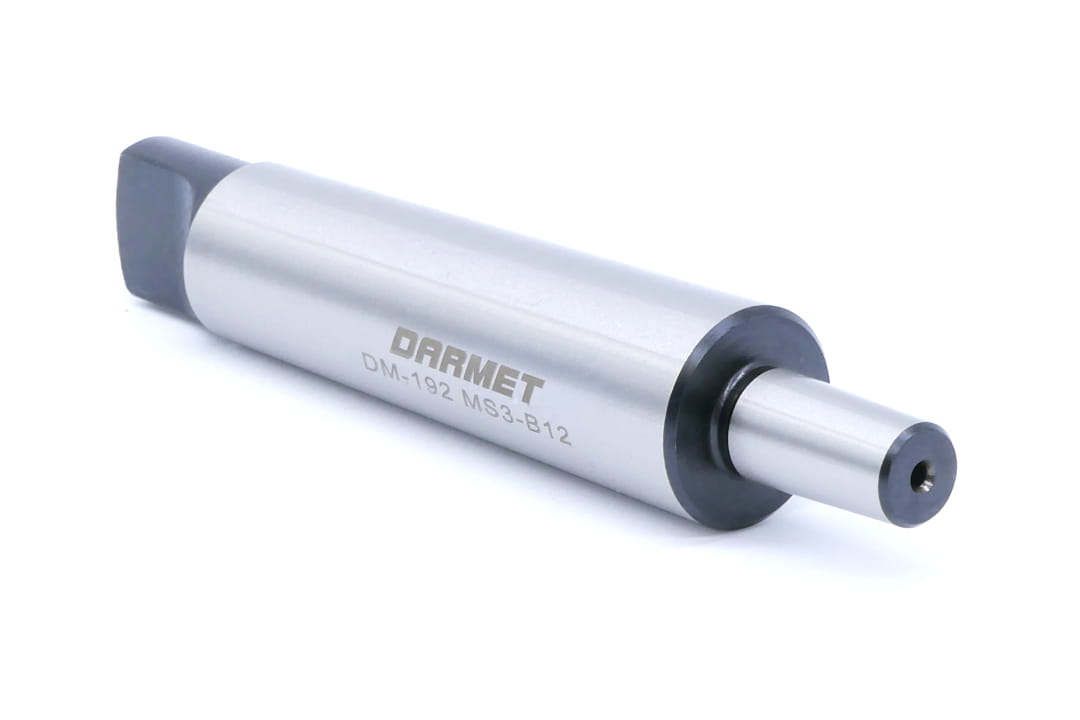

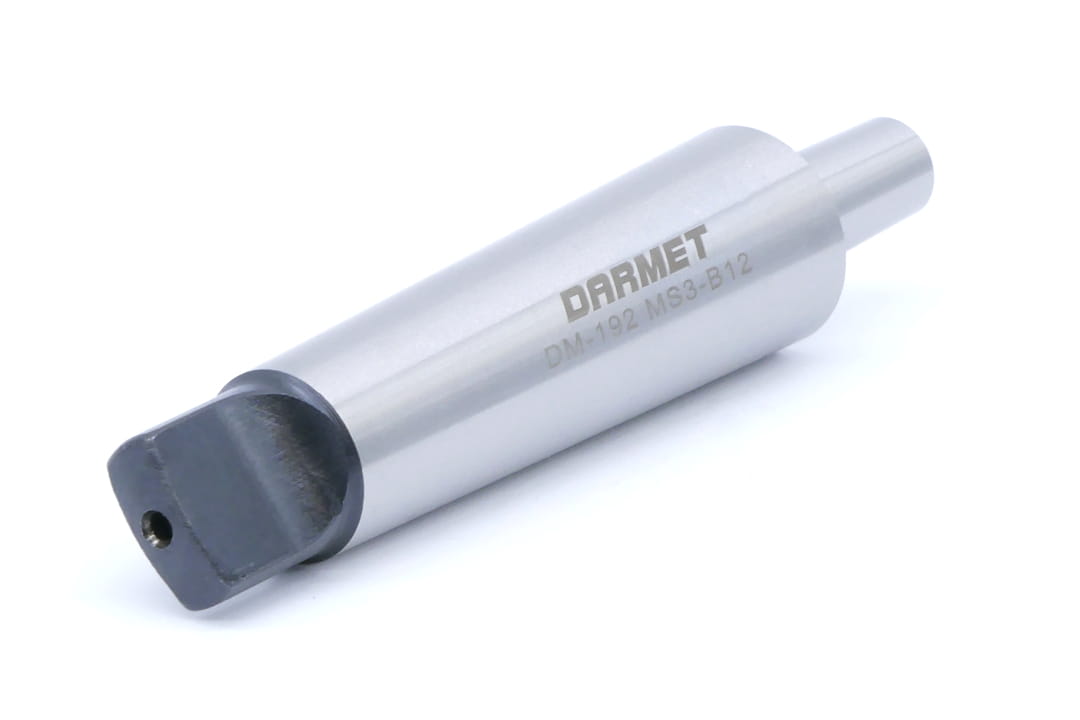

Morse taper with fin for MK3/B12 drill chuck - DARMET (DM-192)
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Information:
- Morse taper drill arbor with fin (DIN228-B) for drill chucks with an internal taper according to DIN238.
- Used for mounting drill chucks with a B12 taper in column drills, lathes and other machine tools.
- To remove the arbor from the spindle seat, wyciągły wnękane are used.
Specification:
| Parameter | Value |
|---|---|
| K (Morse) | 3 |
| K1 (DIN 238) | B12 |
| d | 12.065 mm |
| L | 124 mm |
| Weight | 0.3 kg |
See technical information about drill cones by DARMET
