Rotary base 226 mm for precision vises FPZ - POZ125P DARMET
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Technical information:
- POZ swivel base for precision vices FPZB and FPZD in size 125
- Made of high-performance alloy steel.
- 2 clamping arms fastened with screws.
- Rotation range: 120° with a mounting pin / 360° without a pin.
- Clear angular scale graduated every 1°.
- Working surface hardness 58 - 62 HRC.
Specification:

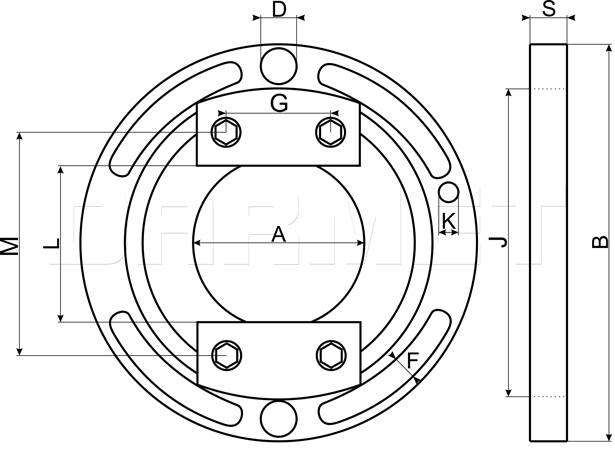

| Parameter | Value |
|---|---|
| D | 14 / 9 mm |
| J | 146 mm |
| F | 14 / 9 mm |
| A | 100 mm |
| L | 95 mm |
| K | 10 mm |
| S | 23 mm |
| B | 226 mm |
| M | - |
| G | 40 mm |
| Groove | 16 mm |
| To model vice | FPZB125/150, FPZD125/2x100 |
| Weight | 5.5 kg |
Equipment:
| Base | 1 pc. |
| Mounting claws | 2 pcs. |
