Rotary base 320 mm for precision vises FPZ - POZ175P DARMET
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Technical information:

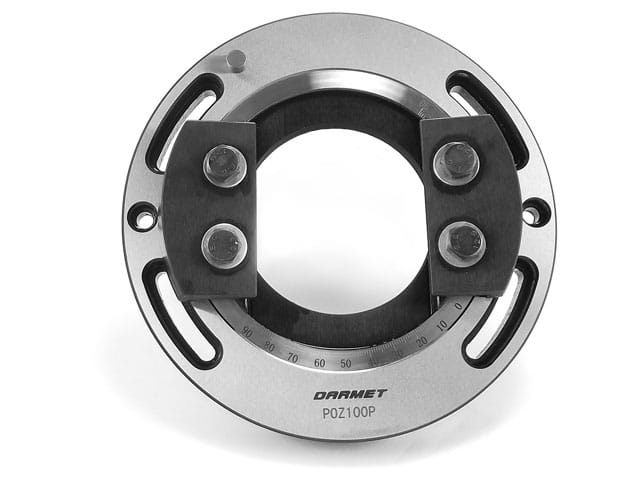

- POZ swivel base for precision vices FPZB, FPZD, FPZV in size 175.
- Made of high-performance alloy steel.
- 2 clamping legs fastened with screws.
- Rotation range: 120° with pin clamping / 360° without a pin.
- Clear angle scale in 1° increments.
- Working surface hardness 58 - 62 HRC.
Specification:
| Parameter | Value |
|---|---|
| D | 19 / 13 mm |
| J | 110 mm |
| F | 19 / 13 mm |
| A | 150 mm |
| L | 145 mm |
| K | 12.8 mm |
| S | 28 mm |
| B | 320 mm |
| M | - |
| G | 60 mm |
| Groove | 16 mm |
| For vice models | FPZB175/300, FPZB175/400, FPZD175/2x170, FPZD175/2x270, FPZV175/300 |
| Weight | 13 kg |
Equipment:
| Base | 1 pc. |
| Clamping feet | 2 pcs. |
