Sealed collet | ER16 - 8 mm - DARMET

Availability: mała ilość

Dispatched within: 24 hours

Delivery: The price does not include any possible payment costs check the delivery methods

Gross price: $21.35

incl. 23% TAX, excl. shipping costs

Regular price:

21.35

The lowest price during 30 days prior to the reduction:

Net price: $17.36

excl. 23% TAX, excl. shipping costs

Regular price:

The lowest price during 30 days prior to the reduction:

quantity szt.

You gain 7 points []

product unavailable

add to wish list

Rating:

Vendor:

Product code: DM_TUL_ER16_08_USZCZ

Information:

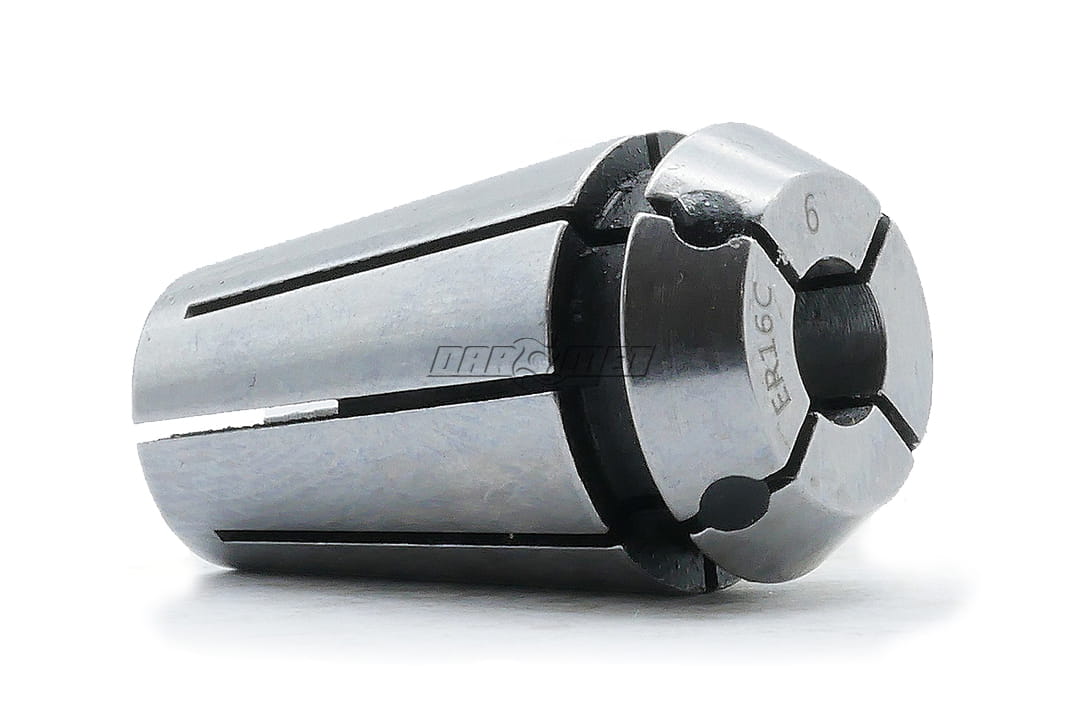

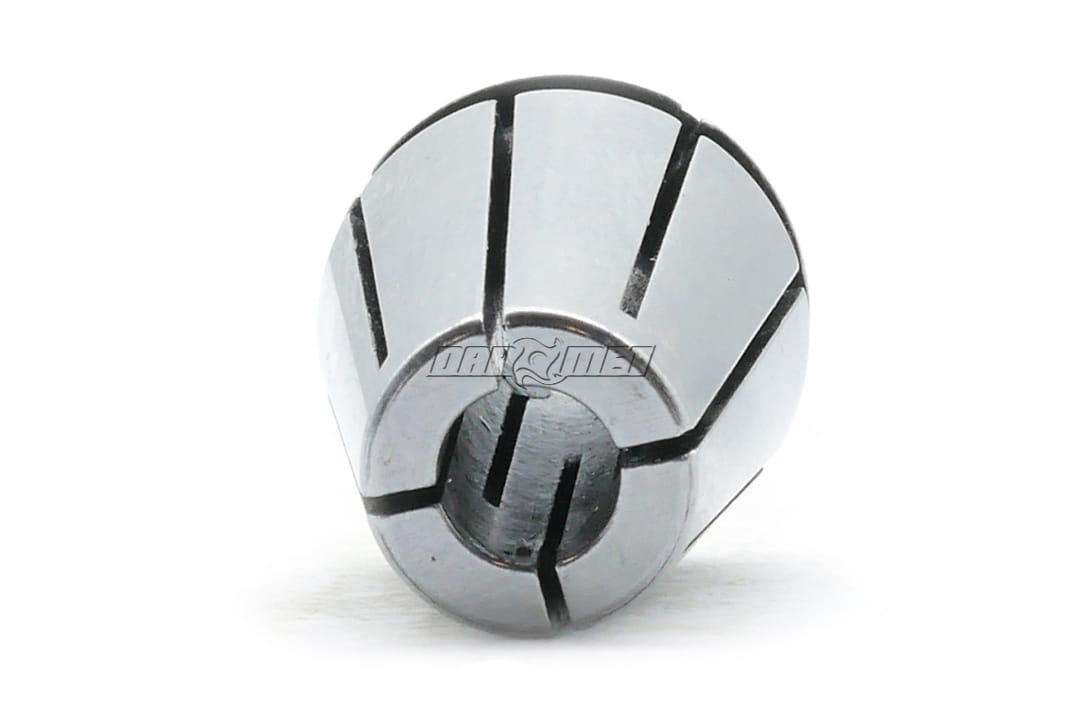

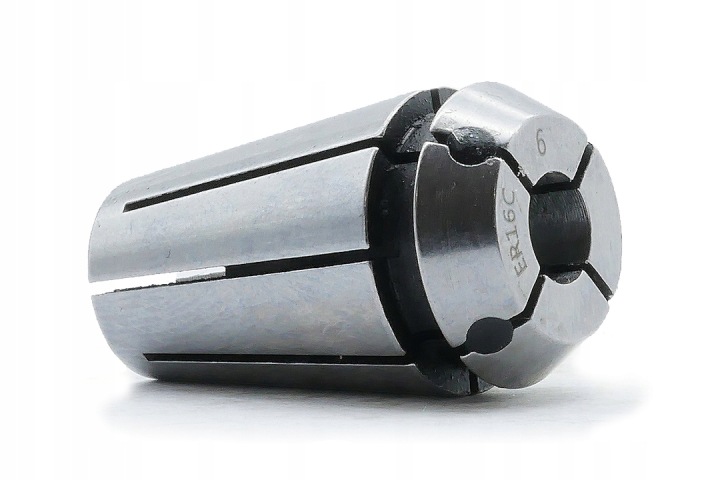

✔️ Sealed t collet ER16.

✔️ For clamping tools with a shank diameter of 8 to 7.1 mm.

✔️ The device enables central cooling, shown in the diagram below.

✔️ Collet used in ER16 collets.

ER25-RF collet - 3MM

Collet - standards.

ER	d₁ [mm]	Range crimping [mm]	d₂ [mm]	d₃ [mm]	a_AT3	l₁ [mm]	l_{13 max} [mm]
ER11	1÷7	0.5	11	11.5	8°	18.0	6.6
ER16	1÷10	0.5÷1	16	17.0	8°	27.5	10.6
ER20	1÷13	0.5÷1	20	21.0	8°	31.5	11.5
ER25	1÷16	0.5÷1	25	26.0	8°	34.0	12
ER32	1÷20	0.5÷1	32	33.0	8°	40.0	13
ER40	1÷30	1	40	41.0	8°	46.0	15

Insert the collet at an angle into the nut.
Attach the collet's groove to the eccentric or cylindrical projection of the nut (fig. A).
Press the collet into the nut (fig. B).
Screw the nut with the pressed collet onto the holder so that the tool being processed can be clamped.

tool shank size depending on collet size
