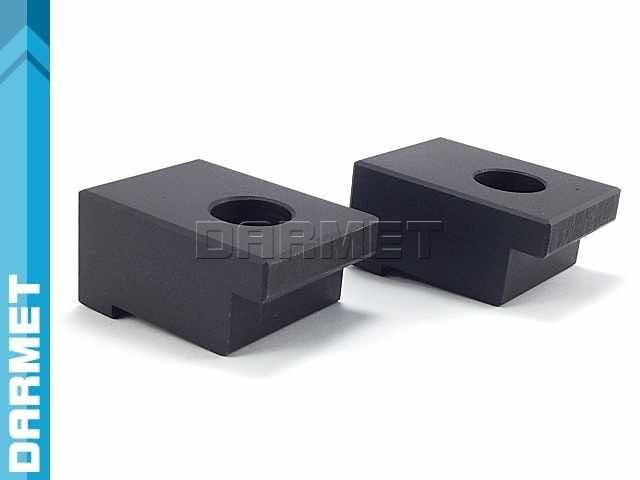

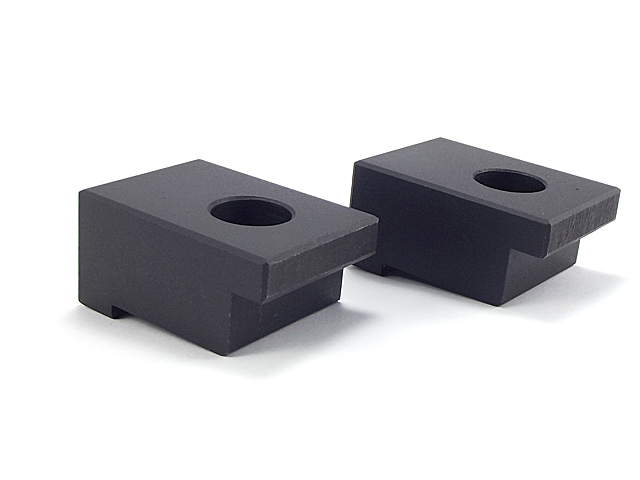

Stepped pressure clamp for FPZ150 and FPZ175 vises - set of 2 pcs. DARMET
Regular price:
Regular price:
product unavailable
add to wish list
Description
Technical information:
- Set of two pieces of clamps for mounting vices type: FPZ, FPZB, FPZD, FPZV.
- Compatible with vises of sizes 150 and 175.
- Elements thermally fixed and oxidized.
- To attach the vise to the work table, use screws for T-slots.

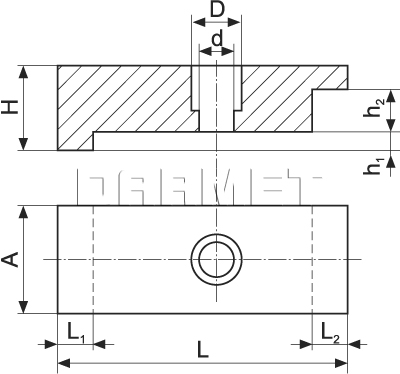

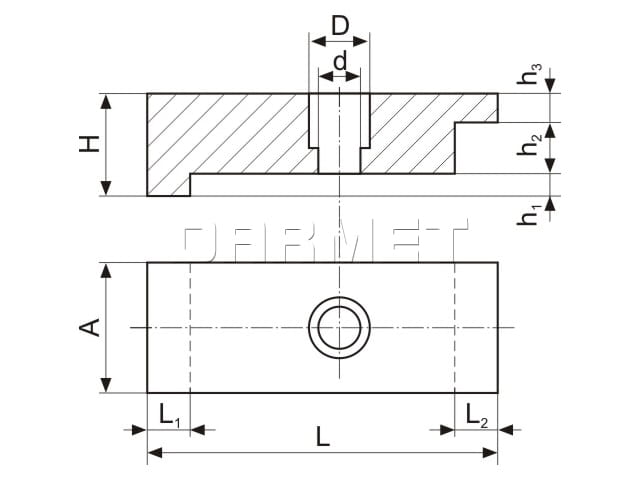

Specification:

| Parameter | Value |
|---|---|
| Vise size | 150, 175 |
| H | 30 mm |
| D | Ø19 mm |
| d | Ø13 mm |
| A | 42 mm |
| L | 60 mm |
| h1 | 4 mm |
| h2 | 16 mm |
| h3 | 10 mm |
| l1 | 13 mm |
| l2 | 10 mm |
