Fast delivery

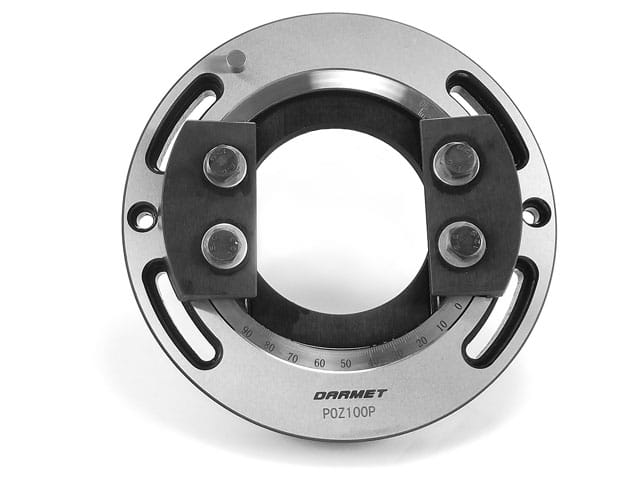

Rotary base 180 mm for precision vises FPZ - POZ100P DARMET
Regular price:
Regular price:
product unavailable
add to wish list
0
Description
Technical information:
- POZ swivel base for precision vices FPZB and FPZD in size 100
- Made of high-performance alloy steel.
- 2 clamping arms fastened with screws.
- Rotation range: 120° with a mounting pin / 360° without a pin.
- Clear angular scale graduated every 1°.
- Working surface hardness 58 - 62 HRC.
Specification:
| Parameter | Value |
|---|---|
| D | 11.2 / 6.5 mm |
| J | 110 mm |
| F | 12 / 6.4 mm |
| A | 80 mm |
| L | 75 mm |
| K | 8 mm |
| S | 20 mm |
| B | 180 mm |
| M | - |
| G | 33 mm |
| Groove | 16 mm |
| To model vice | FPZB100/100, FPZD100/2x90 |
| Weight | 3.3 kg |
Equipment:
| Base | 1 pc. |
| Mounting claws | 2 pcs. |
Video presentation:
